קופסת עיתונאים אקטיבית עם 8 יציאות אנלוגיות ו4 יציאות USB-C
Audio Press Box
APB Mini

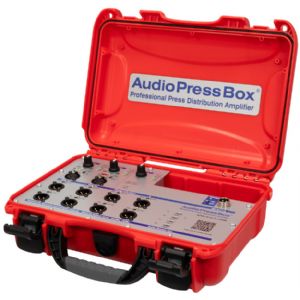

קופסת עיתונאים אקטיבית קומפקטית בקייס.
2 כניסות אנולוגיות וכניסה 1 USB-C, 8 יציאות אנלוגיות ו4 USB-C
![](../../images2/AudioPressBox%20312-cusb_open_600.jpg)

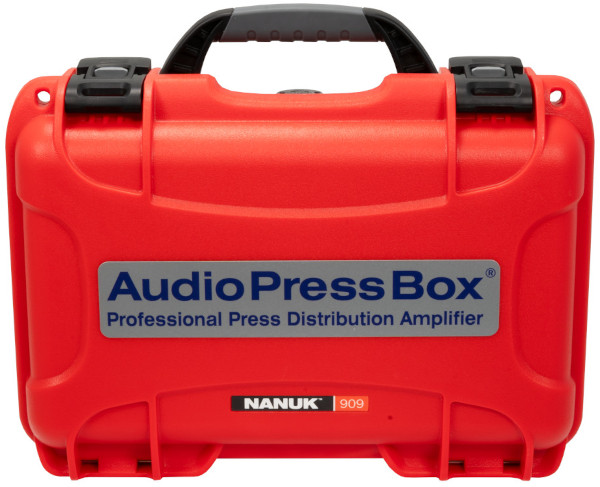

Professional portable, active, pressbox with 2 Analog Line/Mic inputs, 1 Digital USB-C input & output and 8 Analog Line/Mic & 4 Digital USB-C outputs. It is suitable for both indoor and outdoor press conferences due to heavy duty Nanuk case. The USB-C also allows a video conference in & out connection for a hybrid press conference.
- 2 Analog MIC (phantom power) / LINE inputs – balanced with gain control and 26dB PAD
- 1 Digital USB-C input & output
- 8 Analog XLR balanced and individually transformer isolated outputs
- XLR outputs are switchable between MIC or LINE output level
- 4 Digital USB-C outputs
- Built-in Compressor and Limiter for Analog (XLR) inputs
- On unit printed QR code for online access to manual, user guide and video guide
![](../../images2/AudioPressBox%20312-cusb_close_600.jpg)
Specification
Audio Press Box APB-312 C-USB |
Type |
3 in 12 out |
Groups |
1 |
Input section |
Inputs |
2 analog, 1 digital |
Analog Inputs |
Input connectors |
Balanced, XLR |
Input Gain |
Mic: +22/+62dB |
Line: -4/+36dB |
Max. input level |
Mic: -10/-30dBu |
Line: +36/-4dBu |
Phantom Voltage |
48V |
Input Impedance |
Mic: 2,4 kΩ |
Line: 3,5 kΩ |
Digital Input / Output |
Input connector |
USB Type C |
Compliant USB Specificaion |
USB 2.0 |
Input Gain |
-∞/ +6 dB |
Supported Sampling Rates |
32kHz, 44.1kHz, 48kHz |
Bit Depth |
16-Bit |
Interface Powering: |
Bus Powered* |
Charging capability: |
No |
Output section |
Outputs |
8 Analog with Line/ MIC level, 4 Digital |
Analog Outputs |
Output connectors |
Balanced, XLR |
Nominal Output Level |
+6dBu |
Maximum Output Level |
+20dBu (no load) +14dBu (600Ω) |
Output impedance |
Mic: 220Ω |
Line: 600Ω |
Transformer isolated outputs |
Yes (each output) |
SNR |
86dB |
Frequency Response |
120Hz to 30kHz/ -3dB |
Digital Outputs |
Output connector |
USB Type C |
Compliant USB Specification |
USB 2.0 |
Supported Sampling Rates |
8kHz, 11.025kHz, 16kHz, 22.05kHz, 32kHz, 44.1kHz, 48kHz |
Bit Depth: |
16-Bit |
Interface Powering: |
Bus Powered* |
Charging capability: |
No |
Controls |
Input section |
26dB PAD, Input gain, Phantom |
Output section |
Power switch, Output PAD |
Indicators |
Input section |
Phantom power, Input level |
Power |
Power Supply |
24V DC, 1A external adaptor |
Battery |
None |
Battery operation time |
- |
Mechanical |
Dimensions (WxHxD) |
370x 120x 300mm |
Weight |
approx. 2.9 kg |
*USB Interface is powered from connected USB host device
