Description

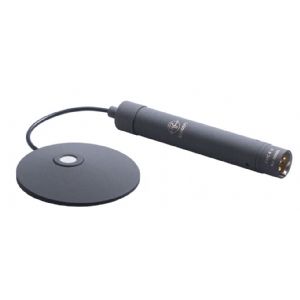

The BLM 03 C is connected through its fixed cable to a Colette CMC microphone amplifier, thus resulting in a complete microphone. All known properties of the BLM 03 C are identical to those of the BLM 3.

It is recommended to use the BLM 03 C when the BLM 3 is too large (for example when recording for TV or film) or too heavy (for example when gluing to the roof inside a vehicle or under the lid of a grand piano).

Since the BLM 03 C includes active electronics, it is not compatible with other active accessories such as RC, KC.

Practice

The small dimensions of the BLM 03 C in combination with the matte gray Nextel surface enable a particularly discreet placement. Even completely invisible placement is possible if the microphone is hidden under a tablecloth made of lightweight fabric.

Due to its small size, however, it should be noted that the BLM 03 C should definitely rest on a sufficiently large, sound-reflecting surface. When recording a panel discussion, a table may be sufficient. For most music recordings a larger area is recommended.

The BLM 03 C can also be mounted in a grand piano with the lid open or closed.

Technical Specifications

Pickup pattern	Half-space
Frequency range	20 Hz - 26 kHz 20 Hz - 43 kHz with CMC 6xt
Sensitivity	-36 dB (V/Pa), 16 mV/Pa
Equivalent noise level (A-weighted)	12 dB
Equivalent noise level (CCIR)	23 dB
Signal-to-noise ratio (A-weighted)	82 dB
Maximum sound pressure level (THD < 0.5 %)	130 dB-SPL with CMC 6 134 dB-SPL with CMC 6
Diameter	80 mm
Height	8,6 mm
Weight	233 g
Surface finish	matte gray
