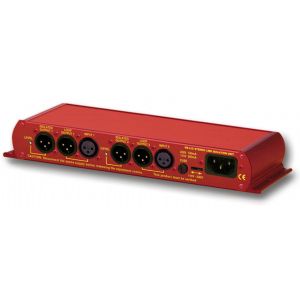

Stereo Line Isolation Unit

Sonifex

RB-LI2

The The RB-LI2 stereo line isolation unit is used to isolate audio signals from inter-area ground hum loops, which could be caused by equipment being powered by different mains power supplies, or different phases on the same supply. The input and output are connected together through a transformer, which has internal jumpers allowing the outputs to be balanced about ground.

There is also a loop-through output, so that the RB-LI2 can be inserted into a line, forming a transformer balanced distribution point.

The isolated outputs can be individually adjusted using pre-set potentiometers, accessible through the rear panel. The gain range of the stereo line isolation unit is -15dB to +13.5dB (28.5dB).

This unit is useful where audio is required to be driven over a relatively long length of cable. By isolating the signal using transformers, ground loop currents that can be present in non-isolated signals, are eradicated completely.

קישור לאתר החברה

קטלוג המוצר

מחיר קטלוגי: 2060 ₪ (2410 ₪ כולל מע"מ)

צור קשר לקבלת הצעת מחיר
