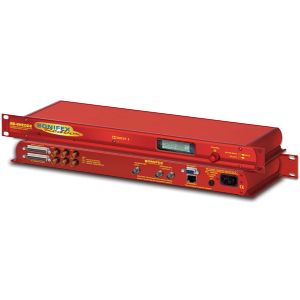

Dolby® E Encoder & Embedder.

The audio inputs to the Encoder can be selected to come from the external digital audio inputs via the BNC or D-type connections on the rear panel or from embedded audio contained in the incoming SDI input. The outputs from the de-embedder can also be re-embedded into the video outputs, along with the encoder inputs.
The digital audio I/O connections are transformer-coupled balanced line interfaces and can be configured to be either 75Ω (AES 3ID) or 110Ω (AES 3) impedance through either a BNC or via the D-type connector. These connections are paralleled, allowing one type to be used per input or output.

It has a triple rate SDI receiver with automatic input rate detection and equalisation along with two re-clocked and individually buffered SDI outputs. It supports the full range of 3G, HD and SD standards from NTSC and PAL up to 1080p 60Hz.

The metadata used for the encoding process can be selected to come from either the external 9-pin D-type on the rear panel, from metadata embedded into the vertical blanking area of the video input (SMPTE 2020), or by settings stored internally.

There is also remote I/O available from the rear panel through a 25 way D-type connector. These are fully configurable.

The unit is controlled locally through the front panel display but can be remote controlled via an Ethernet connection using the Sonifex SCi software.

There is independent level control for every channel, which can be adjusted from -24dB through to +24dB in 0.5dB steps.
