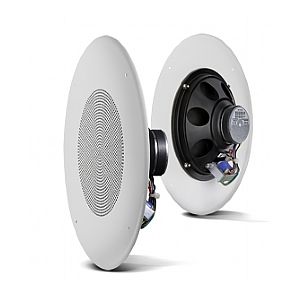

רמקול שקוע תקרה "8 בהספק 20W

 מאפיינים:

ספק 10 וואט לשימוש עם מגברי 70/100/25 וולט

מתאים ל- Backcan CSS-BB8

Specifications:

Driver Size (dual-cone): 200 mm (8 in)
Driver Sensitivity (mid-range)
(1W [2.83V], 1m, 2k – 6k Hz): 97 dB
Frequency Range (-10 dB)
Driver/Grille Assembly: 50 Hz – 17 kHz
Installed in CSS-BB backcan: 90 Hz – 17 kHz
Coverage (2 kHz): 110°
Driver Continuous Power Handling: 20 Watts
100V Taps: 10W, 5W, 2.5W
70V Taps: 10W, 5W, 2.5W, 1.3W
25V Taps: 10W, 5W, 2.5W, 1.3W
Transformer Insertion Loss: 1.5 dB Maximum
Transformer Connection: Bare wire
Motor Mass: 283 g (10 oz)
Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when
installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker.
Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Matching CSS Backcan: CSS-BB8 (0.15 cu ft)
Bolt Mounting Circle to Backcan: 4 points on 286 mm
(11.25 in) diameter
Cutout Diameter:
Open-back: 216 mm (8.5 in)
In CSS-BB backcan: 295 mm (11.7 in)
Depth (behind grille): 73 mm (2.9 in)
Grille Diameter: 327 mm (2.9 in)
Net Weight (ea): 1.58 kg (3.5 lb)
Shipping Weight (ea): 2.25 kg (5.0 lb)
Included Accessories: 4 pcs M4 x 40 mm sheet metal screws for attaching speaker/driver/transformer
assembly to corresponding backcan.
