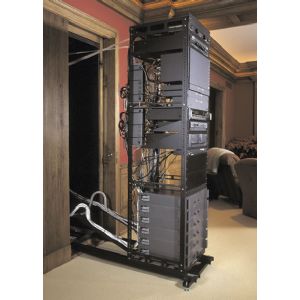

Pull-out frame rack saves time & reduces labor
Frame heights range from 10 sp. (17.5") or 15 sp. (26.25") to 43 sp. (75.25")
Available in 16", 20" or 26" depths
Available in 2 extension lengths: 25" or 48"
650 lb. weight capacity with proper distribution
Mechanically interlocking corner for exceptional strength
Heavy-duty 13-gauge steel top & bottom
2 pairs fixed-position 11-gauge threaded 10-32 front & rear rackrail
Cable Management Tray provides additional capacity for large cable bundles
Brush Gasket fills unsightly gaps that may appear between the rack and custom millwork (requires a rough-in width of 19-5/8")
Guide Kit includes the Brush Gasket and helps center the rack while protecting millwork (requires a rough-in width of 19-5/8"). Suffix rack part number with -GG to include Brush Gasket and Guide Kit.
Finished in a durable black powder coat
Full-depth front & rear mount AXS rack shelf available

Part #		Extension Length	Frame Depth	Millwork Opening Depth
AXS-xx-26	Replace 'xx' with the # of useable spaces (15 to 43 spaces)	48"	26"	28.5"
AXS-xx-26-GG*	Replace 'xx' with the # of useable spaces (15 to 43 spaces)	48"	26"	28.5"
AXS-xx	Replace 'xx' with the # of useable spaces (15 to 43 spaces)	48"	20"	22.5"
AXS-xx-GG*	Replace 'xx' with the # of useable spaces (15 to 43 spaces)	48"	20"	22.5"
AX-SX-xx	Replace 'xx' with the # of useable spaces (10 to 43 spaces)	25"	20"	22.5"
AX-SX-xx-GG*	Replace 'xx' with the # of useable spaces (10 to 43 spaces)	25"	20"	22.5"
SAX-xx	Replace 'xx' with the # of useable spaces (15 to 43 spaces)	48"	16"	19"
SAX-xx-GG*	Replace 'xx' with the # of useable spaces (15 to 43 spaces)	48"	16"	19"
SSAX-xx	Replace 'xx' with the # of useable spaces (10 to 43 spaces)	25"	16"	19"
SSAX-xx-GG*	Replace 'xx' with the # of useable spaces (10 to 43 spaces)	25"	16"	19"

*Part numbers with -GG include the Brush Gasket and Guide Kit

The following is included w/ each of the above

Qty	Items Included
1	rack frame in specified height [A]
2	triple hinged cable carriers [B]
1	internal system base [E]
1	top restraining leash [F]
1	assembly hardware kit

SERVICE TRACKS & SERVICE STAND REQUIRED FOR INSTALLING AND SERVICING
Service Tracks [C]
-A pair of removable service tracks

Part # (Pair)	Use with	Track Length	Rack Frame Extension Length
TRACK50	AXS, SAX, AXS-xx-26	50"	48"
TRACK25*	AX-SX, SSAX	25"	25"

*TRACK25 can only be used with AX-SX and SSAX short extension system

Service Stand [D]
-removable telescoping stand that supports and levels the service tracks

Part #	Height range off the floor
TRACKL	2.25" to 3.25"
TS310	3" to 11"
TS1022	10" to 22"
TS1640	16" to 40"

Power Compatibility Chart

Power Strip - AXS, AXS-xx-26, AX-SX, SAX, SSAX racks
	10 space and up
	17 space and up
	21 space and up
	25 space and up
	35 space and up
	41 space and up

NOTE: When mounting vertical power strips, part # PB-5A is required.

also mounts with part PB-XS

Accessories
These fan kits have been designed specifically to fit the AXS, and include special hardware that will not protrude past the top of the AXS, or into the first rackspace.

Part #	Description
AXS-FAN	slim-fan for AXS rack
AXS-FAN-K	2 slim-fans for AXS rack

AXS-WT Cable Management Tray
Mounts between cable carriers of any AXS Series slide out rack (non-rotating only) to provide additional capacity for large cable bundles.

Part #	Fits
AXS-WT50	AXS, SAX
AXS-WT25	AX-SX, SSAX

Brush Gasket and Guide Kit
Black Brush Gasket fills unsightly gaps that may appear between the rack and custom millwork. The Guide Kit includes the Brush Gasket and helps center the rack while protecting millwork. Both require a rough-in width of 19-5/8"

Part #	Description	Fits*
BG17	17' Brush Gasket	AXS-xx-26, AXS-xx, AX-SX-xx, AXS-SXR, SAX-xx, SSAX-xx
AXS-GG16	Guide Kit with Brush Gasket	SAX-xx, SSAX-xx
AXS-GG20	Guide Kit with Brush Gasket	AXS-xx, AX-SX-xx, AXS-SXR
AXS-GG26	Guide Kit with Brush Gasket	AXS-xx-26

*suffix rack part number with -GG to include Brush Gasket and Guide Kit
