Telescoping Lacer System

Adjusts to fit front to rear or horizontally within any Middle Atlantic Products enclosure
Provides for effective cable management and cable strain relief
Accepts mounting of vertical lacer strips and thin power strips for a complete cable management system

מחירים

LBFR-2036		₪ 410
LBFR-5A-20		₪ 250
LBH-1930-T		₪ 290

#96-01058 Download or view PDF file

Part #	Description	Telescoping Range (from mounting hole to mounting hole)	Useable Depth of Rack (requires rear rackrail)	Pre-Pack Qty

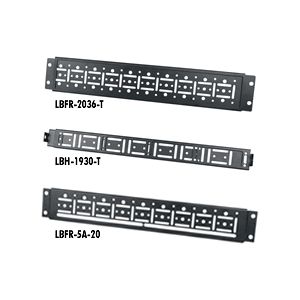

LBFR-1626-T	front to rear telescoping lacer bar	16" to 26"	17-3/8" to 27-3/8"	2
LBFR-2036-T	front to rear telescoping lacer bar	20" to 36"	21-3/8" to 37-3/8"	2
LBFR-3650-T	front to rear telescoping lacer bar	36" to 50"	37-3/8" to 51-3/8"	2
LBH-1930-T	horizontal telescoping lacer bar	19" to 30"	20-3/8" to 31-3/8"	2
LBFR-5A-16	front to rear lacer bar (fits AXS racks)	16" only	17-3/8"	2
LBFR-5A-20	front to rear lacer bar (fits AXS, AX-SXR and SLIM 5 racks)	20" only	21-3/8"	2
LBFR-5A-26	front to rear lacer bar (fits AXS and SLIM 5 racks)	26" only	27-3/8"	2

A complete cable management system, the NEW telescoping lacer bars adjust to fit any Middle Atlantic Products rack.

Allows vertical and horizontal cable management.

Cable strain relief!

Horizontal Lacer Bars

The economical and effective way to manage cable horizontally. New models are constructed from 1/4" diameter rod with flattened end (LBP-1.5R90, LBP-4R90, LBP-6R90 and LBP-10R90) and feature a 90° bend to provide clearance around components that extend past the rear rackrail. Made from 1/4" diameter rod with flattened ends (model LBP-1R, LBP-1.5 and LBP-1R4) or 3/16" thick aluminum (model LBP-1S), and finished in a black powder coat. Model LBP-1R4 features a 4" offset and model LBP-1.5 features a 1/2" offset for easy viewing of cable identification. Model LBP-1A, LBP-2A, LBP-4A and LBP-6A feature a formed " L" shape, generous cable tie slots, a special coating to protect cable, and are offered in straight and 2" , 4" and 6" offset models, respectively. All lacer bars sold in packs of 10.

Part #	Style	Pre-pack Qty
LBP-1.5R90	90°, 1.5" offset round rod	10
LBP-4R90	90°, 4" offset round rod	10
LBP-6R90	90°, 6" offset round rod	10
LBP-10R90	90°, 10" offset round rod	10
LBP-1R	round rod	10
LBP-1S	rectangular bar	10
LBP-1. 5	1. 5" offset round rod	10
LBP-1R4	4" offset round rod	10
LBP-1A	"L" bar	10
LBP-2A	"L" bar, 2" offset	10
LBP-4A	"L" bar, 4 " offset	10
LBP-6A	"L" bar, 6 " offset	10
LBP-1A-23	"L" bar, 23" width	10
LBP-LTF	2 space lacer panel	10

מחירים

LBP-1.5
₪ 475

LBP-1A
₪ 215

LBP-1A-23
₪ 285

LBP-1R
₪ 330

LBP-1R4
₪ 525

LBP-1S
₪ 330

LBP-2A
₪ 310

LBP-4A
₪ 340

LBP-6A
₪ 395

LBP-LFT
₪ 725

Horizontal Cable Managers

Available in a variety of styles to suit any application
Welded steel construction
Finished in durable black powdercoat

#96-337 Download or view PDF file

HCM-1DV, HCM-2D,
HCM-2DV

HCM-1, HCM-1V, HCM-1D

HCM-1DR, HCM-2DR

Part #

Description

Panel Width

Cable Rings
(see below)

End Rings
(see below)

HCM-1

1-3/4" (1 space) "micro-clip" style

19"

HCM-1V

1-3/4" (1 space) "micro-clip" style, w/ end rings

19"

HCM-1D

1-3/4" (1 space) "D-Ring" style

19"

HCM-1DV

1-3/4" (1 space) "D-Ring" style, w/ end rings

19"

HCM-2D

3-1/2" (2 space) "D-Ring" style

19"

HCM-2DV

3-1/2" (2 space) "D-Ring" style, w/ end rings

19"

HCM-1DR

1-3/4" (1 space) "D-Ring", front and rear

19"

HCM-2DR

3-1/2" (2 space) "D-Ring", front and rear

19"

HCM-1D-23

1-3/4" (1 space) "D-Ring" style, 23" width

23"

HCM-2D-23

3-1/2" (2 space) "D-Ring" style, 23" width

23"

D-RING

wall-mount/ rackmount "D-Ring"


A Cabling area: 0.45" sq. Recommended fill rate: 50% CAT5e cable area: 0.03" sq. # of CAT5e cables: 7	B Cabling area: 3.125" sq. Recommended fill rate: 50% CAT5e cable area: 0.03" sq. # of CAT5e cables: 50

C Cabling area: 7.5" sq. Recommended fill rate: 50% CAT5e cable area: 0.03" sq. # of CAT5e cables: 120

Hinged Horizontal Cable Managers

Dress cables between open frame racks and other enclosures
Cable strain relief provides more reliable connections
Multiple cable pass-throughs - top, rear, bottom and sides
Solid face conceals cables from view
Hinged panel allows easy entry for and access to cable bundles

#96-01003 Download or view PDF file

HHCM-2

Part #	Racking Height	Panel Width	Depth
HHCM-1	One rackspace, hinged horizontal cable manager	19"	3.5"
HHCM-2	Two rackspace, hinged horizontal cable manager	19"	3.5"

Plastic Horizontal Cable Managers

Matches and integrates well with PCD Series Ducts
Comes with removable hinged cover
Available in single piece and 4 packs

Single Piece Part #	4 Pack Part #	Height	Depth
PHCM-1-2	PHCM-1-2-P4	1 Space (1-3/4")	2"
PHCM-1-4	PHCM-1-4-P4	1 Space (1-3/4")	4"
PHCM-2-3	PHCM-2-3-P4	2 Space (3-1/2")	3"

Vertical Lacer Strips

Perforated steel lacer strips mount vertically to rackrail brackets and provide many locations for securing cable ties. Lacer strips can be cut down easily to smaller sizes. LACE-OWP and LACE-OP strips feature tie posts for sliding on pre-wrapped cable bundles using cable ties or up to 3/4" wide Velcro® straps. Some lacer strips also accept cage nuts or mounting of select power strips for increased versatility.

Part #	Description	Qty	Compatible Options
Part #	Description	Qty	Cable Ties	TSW-15	TW12	Cage Nuts
LACE-44-OWP*	4-3/4" width, 44 space w/ tie posts	6
LACE-40-OWP*	4-3/4" width, 40 space w/ tie posts	6
LACE-23-OWP*	4-3/4" width, 23 space w/ tie posts	6
LACE-13-OWP	3-1/4" width, 13 space w/ tie posts	6
LACE-44-OP	3-1/4" width, 44 space w/ tie posts	6
LACE-40-OP	3-1/4" width, 40 space w/ tie posts	6
LACE-37-OP	3-1/4" width, 37 space w/ tie posts	6
LACE-23-OP	3-1/4" width, 23 space w/ tie posts	6
LACE-13-OP	3-1/4" width, 13 space w/ tie posts	6
LACE-44LP	3-1/2" width, 44 space w/ raised lances	6		-		-
LACE-37LP	3-1/2" width, 37 space w/ raised lances	6		-		-
LACE-P	2" width, 45 space, 1/8" thick w/ round holes	6			-	-
LACE-37P	2" width, 37 space, 1/8" thick w/ round holes	6			-	-
LACE-13P	2" width, 13 space, 1/8" thick w/ tie posts	6			-	-
LACE-44-1SP	1" width, 44 space w/ 10 tie saddles	6		included		-
LACE-37-1SP	1" width, 37 space w/ 10 tie saddles	6		included		-
LACE-44-1P	1" width, 44 space tapped for tie saddles	6			-	-
LACE-37-1P	1" width, 37 space tapped for tie saddles	6			-	-

*NOTE: Also accepts mounting of PD Slim and PDT Series vertical power


TSW-15 tie saddles (qty. 15)		TW12 Velcro® cable strap (qty. 12)

LACE-44-OWP	LACE-44-OP
No need to fish in cable ties and straps - just slide them on!

LACE-44-1P	LACE-44-1SP

LACE-44-LP	LACE-P

מחירים

LACE-37-1P		₪ 745
LACE-37-1SP		₪ 1,375
LACE-37-LP		₪ 1,245
LACE-37-OP		₪ 1,220
LACE-37-OWP		₪ 1,420
LACE-37P		₪ 745
LACE-40-OP		₪ 1,270
LACE-40-OWP		₪ 1,470
LACE-44-1P		₪ 810
LACE-44-1SP		₪ 1,460
LACE-44-LP		₪ 1,425
LACE-44-OP		₪ 1,320
LACE-44-OWP		₪ 1,520
LACE-P		₪ 810

Cable Management Pad

Innovative material mounts to OWP Series Lace and reduces weight of cables by 40% and stops the need to over tighten cable fasteners to the point of deformation. Heavy cable bundles are kept in place, reducing strain on connections and tie points with the anti-slip cable pad's permanent high friction surface. The ASP-OWP also reduces the occurences of Return Loss by avoiding over-tightening hook and loop straps.

Part #	Qty.
ASP-OWP	4
ASP-OWP-6	24


ASP-OWP		ASP-OWP on LACE-44-OWP

The Brush Grommet Panel

The brush grommet panels provide a clean, organized cable entry method when used in conjunction with any work surface. Features a built-in cable management tray. Available in 1 and NEW 2 space versions. 2 space brush grommet panel fits in opening on all MW Series top options.

Part #	Racking Height
BR1	1-3/4" (1 space)
BR2	3-1/2" (2 space)

Cable Management Straps

Fasten cable bundles securely while maintaining the integrity of the cable. TW12 cable management straps are perfect for managing cables that are sensitive to strain and are 8" long.

Part #	Description	Qty
TW12	8" cable/wire management straps	12

Protective Grommet

Protect cables with these rubber grommets. The 30 ft. GR030 can be custom cut for any opening. GK4 grommets work with any 4" trade-size electrical knockout and resist cable chafing. The GK-4G gland grommets additionally block dust and help control airflow within an enclosure. 4" grommets are sold in packs of four.

Part #	Description	Qty
GR-30	grommet, 30 ft. long, fits any material up to 1/8" thick	1
GK4	4" grommet ring	4
GK-4G	4" gland grommet	4

GR-30

GK4

GK-4G

The Claw

The unique dual-size "claw" configuration of this versatile wallmount cable hanger provides efficient storage for all cables large and small. Available with side trays for holding small items, or without for increased storage density. Black powder coat finished.

Part #	Dimensions
CLAW	16”w x 3-1/2” deep, with side trays
CLAW14	14”w x 3-1/2” deep

CLAW

CLAW14

Horizontal Cable Tray

Mounts on any 19" rack
Neatly routs cables side-to-side on face of rack
Finished in durable black powdercoat

Part #	Racking Height
HCT-1	1-3/4" (1space)
HCT-2	3-1/2" (2 space)

HCT-1

Utility Panel

Give your drill a rest - our panels are pre-punched with plenty of slots. This economical panel is capable of mounting everything from electrical boxes to power strips. 16-gauge flanged steel construction, black powder coat finish, occupies 1 rackspace (1 3/4").

Part #
UP1

מחיר

UP1

₪ 85
